Features
- Enhanced Features and Fine Image Processor

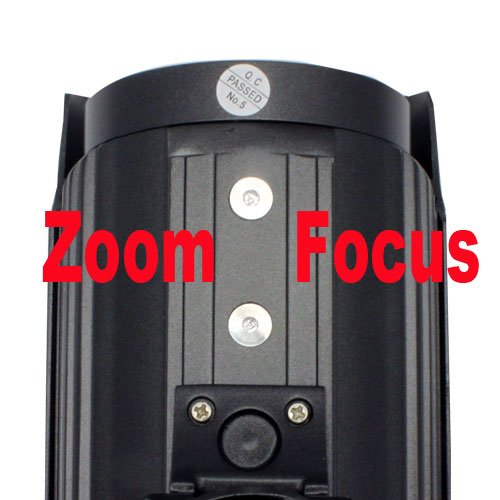

- OSD/2D-DNR/BLC/Privacy Masking; Zoom & focus outside adjusting
- Auto Gain Control; Suitable for wall installing
Description

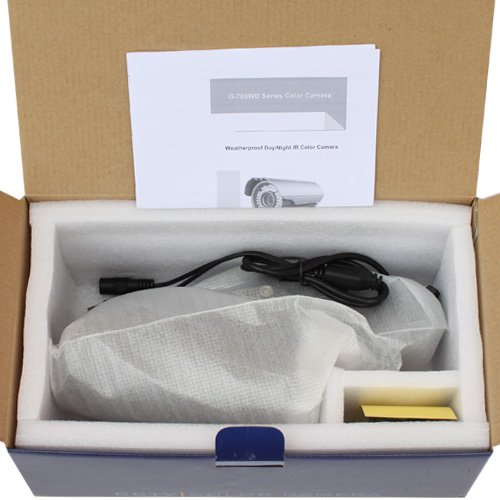

(Power Adapter NOT Included). (700 TV Lines 2.8~10mm Varifocal Lens, 42pcs IR LED, 131ft IR Distance).

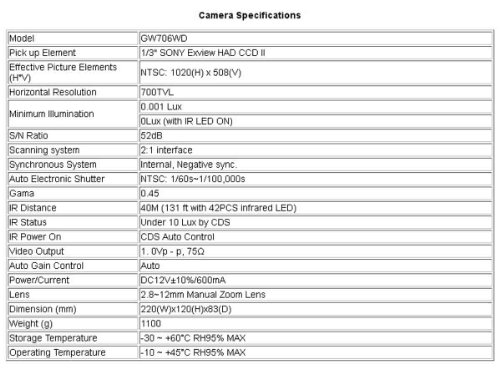

Camera Specifications:
Model G-706WD
Pick up Element 1/3″ SONY Exview HAD CCD II
Effective Picture Elements (H*V) NTSC: 1020(H) x 508(V)
Horizontal Resolution 700TVL;
Minimum Illumination 0.001 Lux
0Lux (with IR LED ON)
S/N Ratio 52dB
Scanning system 2:1 interface
Synchronous System Internal, Negative sync.
Auto Electronic Shutter NTSC: 1/60s~1/100,000s
Gama 0.45
IR Distance 40M (131 ft with 42PCS infrared LED);
IR Status Under 10 Lux by CDS
IR Power On CDS Auto Control
Video Output 1. 0Vp – p, 75?
Auto Gain Control Auto
Power/Current DC12V±10%/600mA;
Lens 2.8~10mm Manual Zoom Lens;
Dimension (mm) 220(W)x120(H)x83(D);
Weight (g) 1100;
Storage Temperature -30 ~ +60?C RH95% MAX
Operating Temperature -10 ~ +45?C RH95% MAX
GW Security Professional Outdoor 1/3-Inch Sony Exview HAD CCD II with Effio-E DSP Devices, 700 TV Lines, 2.8-12mm Varifocal Lens, 42 IR LED CCTV Surveillance Video Security Camera
